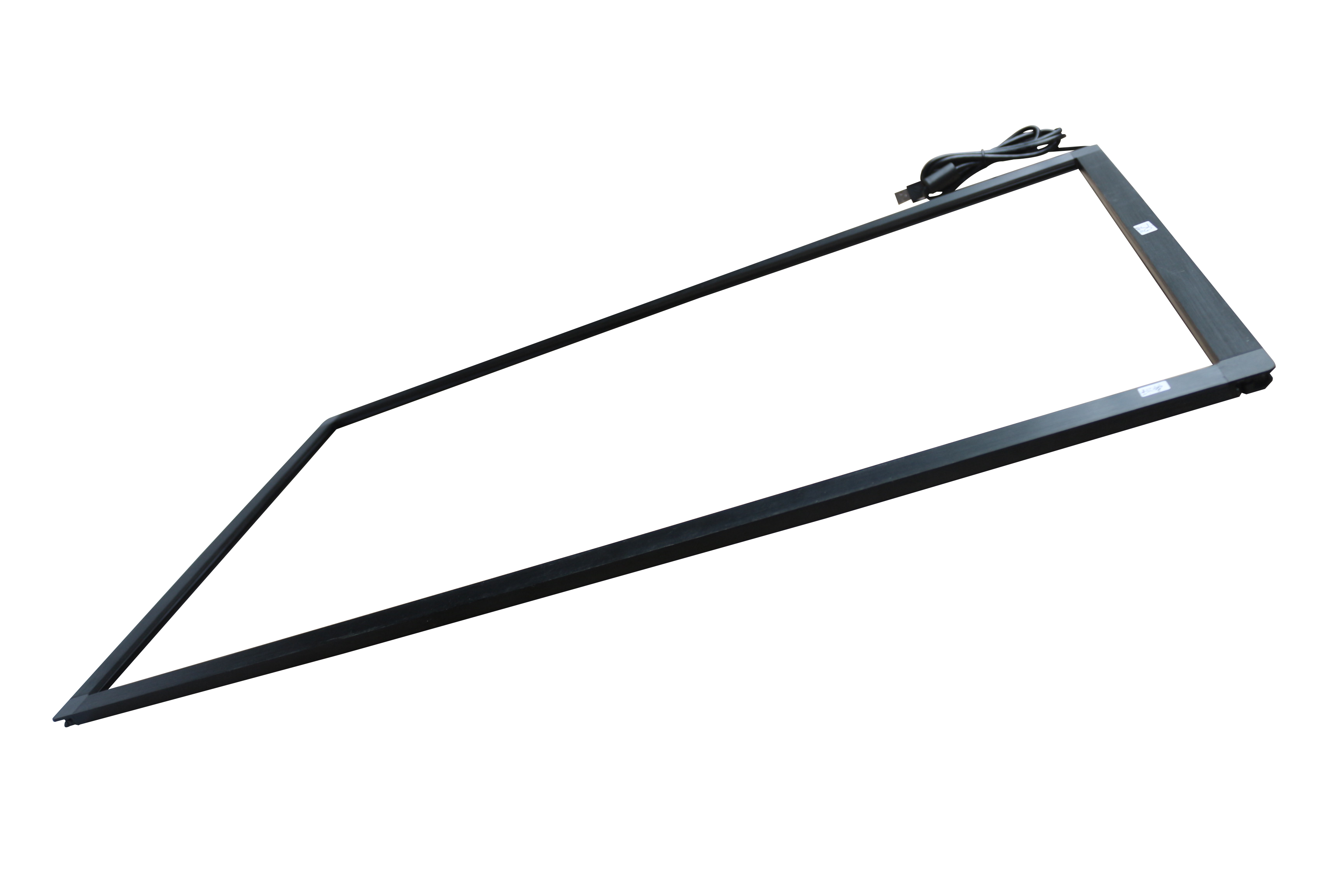

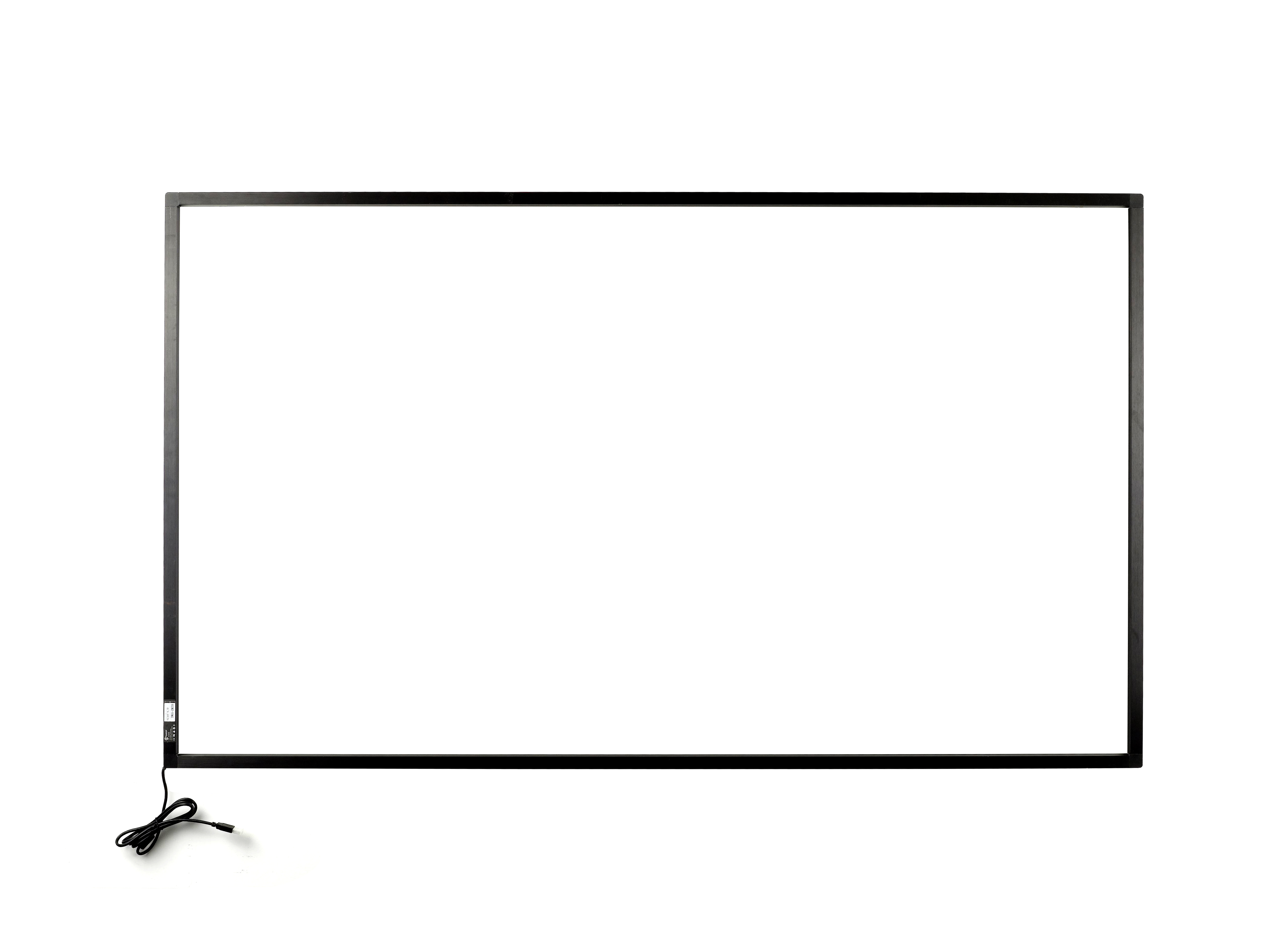

Multi-Touch Screen

TimeLink Multi-touch Screen offers a perfect solution of converting a normal  monitor into an multi-touch monitor. The screen is not only an output equipment, but aslo an interactive input equipment that helps people to get rid of the mouse and keyboard and enjoy interactive experience.

Typical applications:

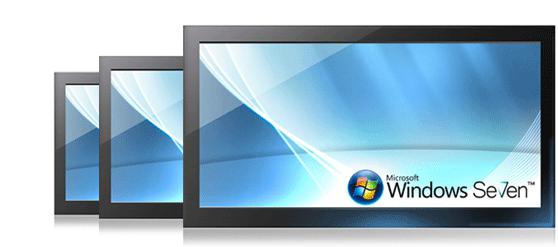

 • Touch Monitor   • IWB   • Kiosk    • Digital Signage   • ATM
 • Enterta
  • Interactive Video Wall

Features & Advantages:

♦ 32”-84” (standard), 84”-250” (customized) ♦ High redundancy design
 2-48 touch options ♦ High fault tolerance (10%)
♦ Super narrow bezel(18.3mm width) ♦ High accuracy
♦ Sunlight & Stong light  workable ♦ High respond speed( Up to 200 fps)
♦ Anti-distortion (15°) ♦ Durable lifetime (60,000 hours / 7years)
♦ HID compatible (20 touch points ) ♦ PCBA solution (Optional)

Multi-Touch Screen Specification:

Main SpecificationStandard Size32", 40", 42", 46", 50", 55", 60", 65", 70"-84"
Touch TechnologySurface Light Wave technology
Touch Activation ForceNo pressure required
Light Transmittance>92% (100% without glass)
Resolution30 DPI
Report Resolution32767x32767
Touch Response Time4ms
Minimum Recognition Point Size2mm x 2mm
Minimum Touch Point Detection1mm
Touch Object RecognitionSupport
InterfaceUSB x 1
Electrical SpecificationFrame Rate≥100Hz
Power SupplyUSB x 1
Working Voltage4.75 - 5.25V
Average Current<400mA
Power Consumption<2W
Lifetime60,000 hours / 7 years
Fault ToleranceStill able to work if 10% non-consecutive sensors are damaged
Environmental SpecificationHumidityUp to 90% RH from 0℃ to 40℃, non-condensing
TemperatureWorking temperature:-10℃~50℃;
Storage temperature:-20℃~60℃
ESDEN 6100-4-2 2008:3 level. 4KV contact discharge, 8KV air discharge
Anti Strong LightStill able to work under strong light (Visible light intensity 140000 Lux / Infrared light intensity 3000 Lux)
Software SpecificationHardware UpgradeUSB Upgrade: Win 10, Win 8, Win 7, Win XP
Support OSWin 10, Win 8, Win 7, Win Vista, Win XP, Linux, Android, Mac OS
Software Interface ProtocolsTUIO, TUIO Adobe Flash. Native Win 7& Win 8 Multi-touch HID Protocol

Application Pictures:


Video: Resistence to light interference   Video: Multiple screens work simultaneously    Video: Distortion resistance ability
